T400ย autonomous delivery drone docking solution
T400ย isย aย 4-apron universalย takeoffย andย landingย drone docking solutionย speciallyย designedย forย the low-altitudeย logistics industry.ย Itย canย realizeย theย automaticย chargingย ofย theย delivery drone,ย theย automaticย swappingย ofย drone batteryย andย packageย box,ย the automatic precisionย landingย ofย drones, andย otherย functions.
Coreย modulesย & highlights
2-in-1ย battery & package swapping
- Standardized package design
- Easy to integrate with drones
- Battery & package swapping together
Intelligent management of battery charging
- Safe & isolated charging
- Real-time battery data monitoring
- Standard drone integrate
Steel structure &ย complete transmission
- Stableย andย easyย toย expand
- Standard transmission module
- Standard drone integration
Unified scheduling human-computer interaction
- Easy to maintain
- Command center included
- Friendly human-computer interaction
ONEย API-friendlyย dockingย
- Standard protocol integration
- Flexible integration way
- Available for standardized network connection

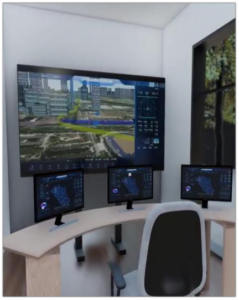

Command center
For drone dispatching and management

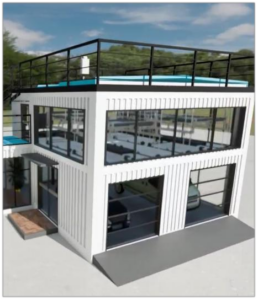

Drone takeoff & landing zone
Appointed zone for drone takeoff and landing
Intelligent packaging unloading zone
Intelligent packaging unloading zone between drone and transit vehicles
Maintenance zone
Maintenance zoneย for drones and related equipment

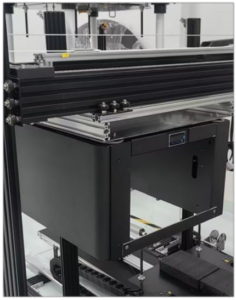

Intelligent isolated charging zone
An isolated zone for charging drones safely
Parking lot for transit vehicles
A parking lot for transit logistics vehicles
Specifications
| Size | 16.5m xย 9.75m xย 6m |
| Weight | 12.6T |
| IP rating | IP54 |
| Material | Steel, aluminum alloy, glasses, etc. |
| Voltage | Max. 20KW |
| Working power | AC 220 V |
| Working temperature | -20โ~ 50โ |
| Drone parking aprons | 4 |
| Dock size | 2.3*2.3m |
| Max. Drone size | 2.7*2.7mย (propeller included) |
| Deployment areaย requirement | 200ใก |
| Sensors | |
| Monitoring cameras | 3 |
| Camera Resolution | 1080P |
| Windspeedย sensor, rainย gauge sensor | ย Temperatureย & humidityย sensor |
| Take-offย & landing soundย & lightย alarm | Dock temperatureย collector |
| Scramย button | |
| Signalย isolationย protection | Leakageย protection |
| Debuggingย toolย PDAย included | |
| Others | |
| Networkย access | Ethernet |
| API | MQTTย protocol |
| Supportย 485ย protocol | |
| Air conditioner type | compressorย AC |
| AC power | 3.5ย ton |
