T20 automatic logistics drone solution for parcel lockers

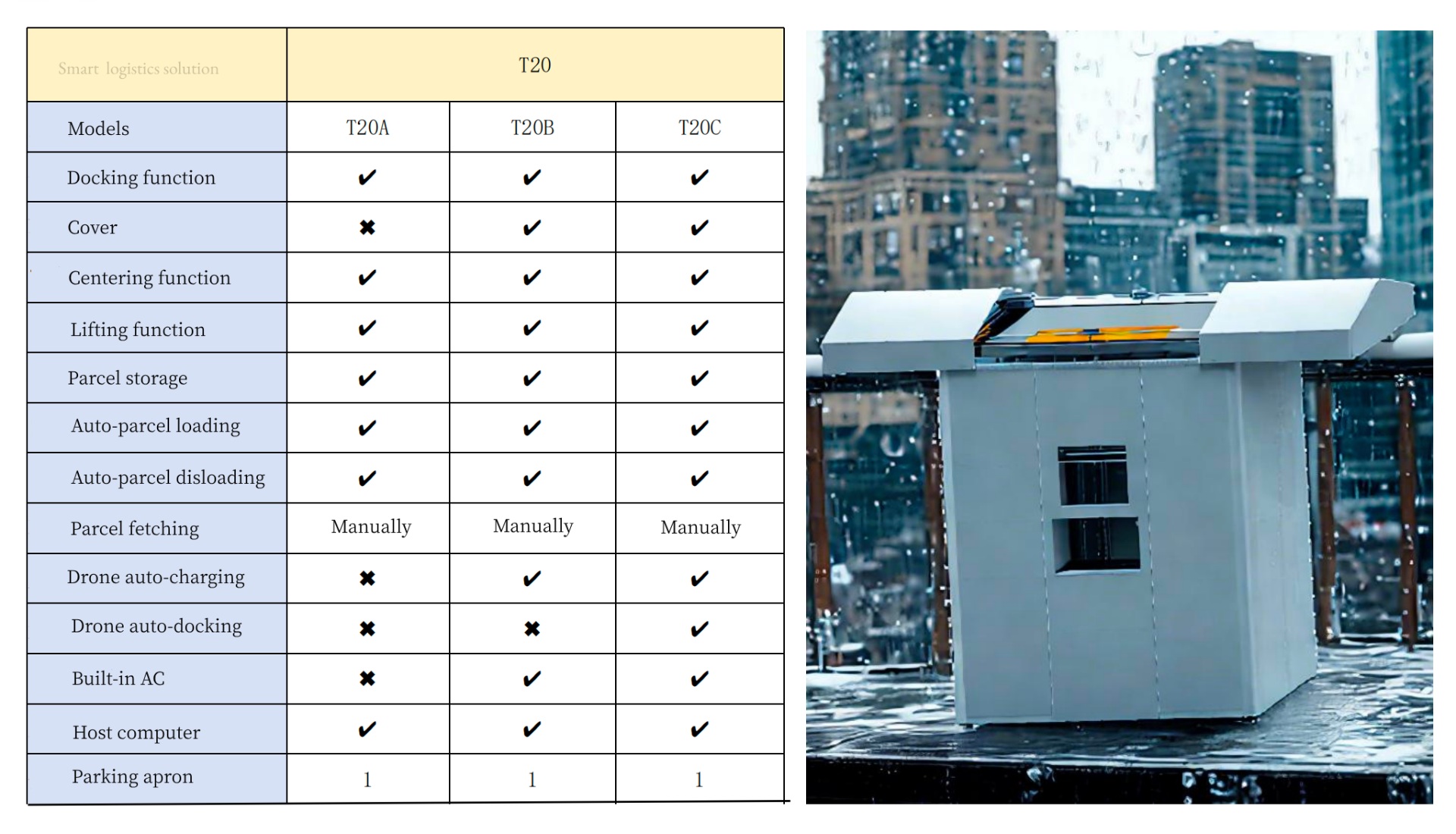

The T20 series of intelligent automatic logistics drone solutions are designed for drone delivery and are an essential model series for the autonomy of delivery drone take-off and landing fields. They provide three products: basic type (T20A), standard type (T20B), and fully automatic type (T20C), meeting the full-scenario needs from community grocery stores to large logistics parks. They support the independent operation of a single parcel locker or networking of hundreds of lockers, building a regional low-altitude logistics dispatching center, and realizing the full-link automated closed loop of “drone-terminal locker-user/merchant”.
Core modules & highlights

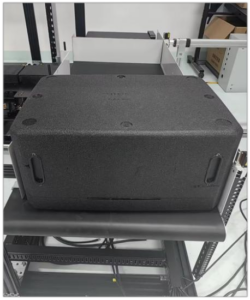

Automatic parcel swapping
- Standardized package compartment design can be placed in the storage area
- Standard buckle, easy to dock with the drone
Comprehensive solutions
- Stable and easy-to-expand Standard transmission module
Diverse plan based on the budget
Standard Host Computer, user friendly
- Easy to maintain
- Three ways to pick up parcels
- Friendly human-computer interaction
Open interface, customizable
- Standard docking protocol
- Hardware supports customization and can be customized for specific scenarios
For parcel fetching
Equipment maintenance
Host computer
For drone takeoff and landing
Drone docking zone
Automatic package storage, real-time monitor on the vacant compartment
Auto-package storage
For equipment maintenance, the command center
Maintenance zone
Standard parcel container, automatic swapping mechanism on the drone
Auto-package swapping
Specifications
| Size | 1.8m x 1.8m x 2m |
| Weight | 1.2T |
| IP rating | IP54 |
| Material | Steel, aluminum alloy, glasses, etc. |
| Voltage | Max. 2KW |
| Working power | AC 220 V |
| Working temperature | -20℃~ 50℃ |
| Drone parking aprons | 1 |
| Dock size | 2.3*2.3m |
| Max. Drone size | 1.8*1.8m (propeller included) |
| Deployment area requirement | 10㎡ |
| Sensors | |
| Monitoring cameras | 1 |
| Camera Resolution | 1080P |
| Windspeed sensor, rain gauge sensor | Temperature & humidity sensor |
| Take-off & landing sound & light alarm | Dock temperature collector |
| Scram button | |
| Signal isolation protection | Leakage protection |
| Debugging tool PDA included | |
| Others | |
| Network access | Ethernet |
| API | MQTT protocol |
| Support 485 protocol | |
| Air conditioner | Based on requirement |
| Open interface | Transport truck customizable |
