DNEST 2 – Command It As Easy As Playing Mobile Game
Full Automatic Unmanned Drone Charging Solution
DNEST 2 is the second generation of ready-to-use, fully automated, remote aerial flight data collection system from HEISHA. It is compatible with a DJI Mavic zoom drone, and other drones with 2S to 12S batteries. The second-generation Freesky Command Center makes it easy for users to complete drone inspections in real-time and get a bird’s eye view of their private territory. With HEISHA DNEST 2’s game-like remote keyboard control, the drone can automatically hover during flight, you can close the canopy, and recharge the drone after it returns back after a flight. As long as there is an Internet connection, long-distance flights and aerial views are possible. For example, when you are in a cafe and want to show your friend around your estate, you can fly the drone and show it directly to him. In addition, DNEST is also your faithful aerial guardian, which can patrol, take photos and drive away intruders. In the 2nd generation, we introduce an intelligent temperature control system for more secure deployment and safer charging, and an internal sensor system to collect data from the station to ensure easier maintenance and diagnosis.
Drone RTH On DNEST 2 Is Worry-free In Both Daylight and Nighttime
Drone’s Precision Landing
Easy operation
No pilots anymore
Advanced mission planner
Meet all your inspection mission needs
DNEST 2 Drone in a box
Freesky OS
Safe flight: all missions are carried out in the geo-fence HD real-time video: millisecond low latency remote broadcast, <300ms Automatic route mission, mission can be planned Game-level flight experience: remote manual flight can be controlled through the keyboard and mouse operation. Point to flight: In the manual mission, click the location on the map with the mouse, and the drone will fly to the specified location automatically Remote gimbal control for video and picture shooting One key panoramic shooting: you can get 360° pictures with one click
D60 Drone Dock
High environmental adaptability: Built-in temperature sensors and control system for high and low temperature environments Safe charging: Done temperature monitor and compact fire extinguisher for extreme case protection Full status feedback: Each module has a status feedback and can remotely diagnose the system status Flexible and easy to deploy: Small size Independent IoT: It's connected to internet as an independent node Dust and water proof: IP45 certificed

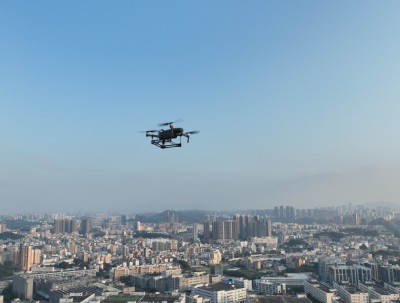

Mavic Drone
DJI Mavic 31 minutes flight time Optical 2X zoom Omni-directional obstacle avoidance 10km video transmission 48 megapixel photo 4x zoom full HD video Faster and more accurate zoom Three-axis gimbal Low noise design

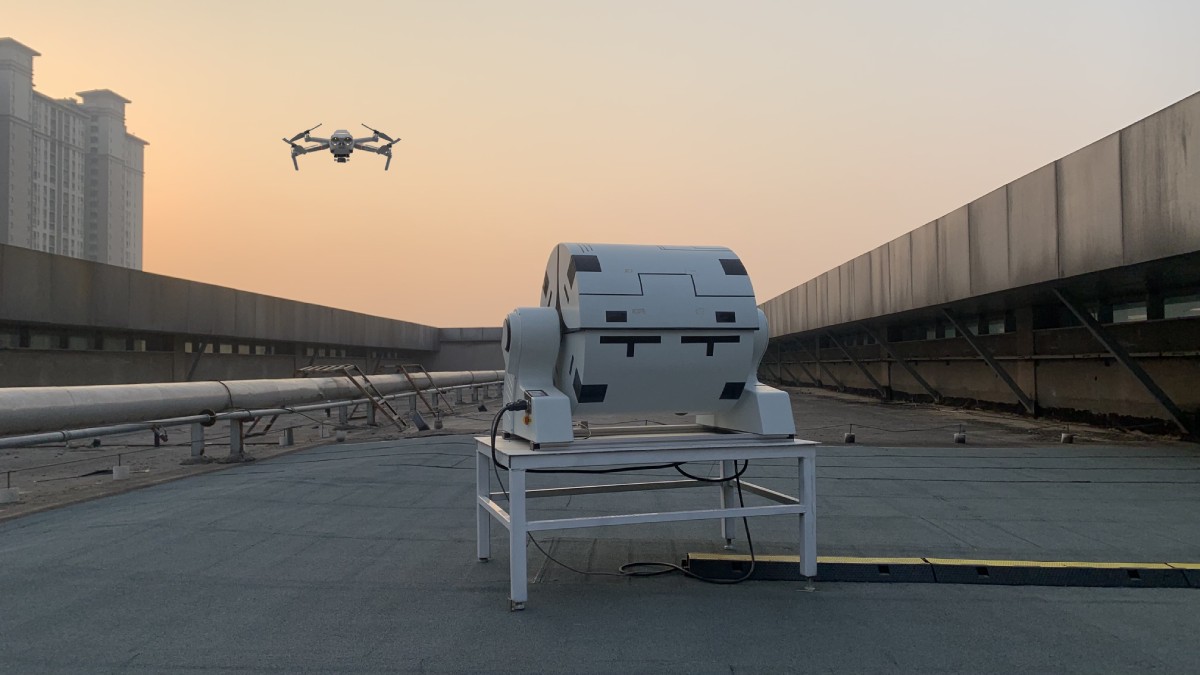

DNEST2 Applications
DNEST Specifications
Canopy | Charging pad | ||
Size (closed): | 1114*733*733 MM (L*W*H) | Size : | 610*610*87.5 MM |
Size (opened): | 1114*733*514 MM (L*W*H) | Landing area | 528*528 MM |
Protection | IP54 rated | Charging method | Locking for contact charging |
Working temp. | -20~50 degrees Celsius | Max.current | 8A |
Weight | 40kg | Weight | 12KG |
Humidity protection | 30%-50%RH | Charging time | 45 MINS |
Durability | ≥50000 times | Material | Glass fiber and aluminum |
Working power | Max. 400W (with A/C on) | Input voltage | 110/220V |
A/C type | Compressor cooling | Working power | AVG 250W |
